1. Introduction

Anthropogenic disturbances to soil range from maintenance of pre-settlement conditions (preserving natural landscapes) to intensive agriculture, consuming resources at the expense of the environment (DeFries et al., 2004). Intensive agriculture changes soil functions such as water balance, organic matter, and nutrient inputs and outputs. Conventional single cropping systems deteriorate soil structure, increase soil compaction and erosion, alter the organic carbon cycle, and change soil pH (Wei et al., 2014).

Several soil health indicators define the level of soil degradation. They include physical properties (water holding capacity, water aggregate, soil penetration), chemical properties (extractable P, K, Mg, Fe, Mn, Zn contents and total C and total N), and biological properties (active carbon, soil respiration, soil protein, and organic matter), according to the Cornell Assessment Soil Health [CASH] framework (Moebius-Clune et al., 2016). Soil health “is the continued capacity of soil to function as a vital living system, within ecosystem and land-use boundaries, to sustain biological productivity and promote the quality of soil and water environments, and maintain plant, animal and human health” (Doran & Parkin, 1994). The assessment's main objective is to evaluate soil health as a result of anthropogenic disturbances such as cropping systems, crop rotation, and intercropping that use in agriculture at different spatial and temporal scales and can be monitored (Yang et al., 2020).

Comparing cropping systems is difficult due to soil variability and temporal dynamics. However, experimental study areas can assist in comparing different agricultural areas (Karlen et al., 2019). Any cropping system, including crop rotation, plant diversity, and intercropping, is an adaptation to maximize crop yield, but intensification of any of these practices can be harmful to the environment. Consequently, soil health assessment can be used to monitor an agroecosystem's long-term sustainability (Agomoh et al., 2020; Yang et al., 2020).

On the other hand, crop rotation can improve soil structure, reduce soil-borne pathogens, increase disease suppression, facilitate nutrient intake, reduce synthetic inputs, and improve yields. Also, crop rotation can increase soil organic matter, microbial biomass, and microbial activity (Agomoh et al., 2020; Reicosky, 2018, p. 165). Furthermore, plant diversity can improve soil microbiota, increase nutrient efficiency, and maintain soil physical structure. It also increases crop yield by balancing chemical input at different scales (Yang et al., 2020). In addition, intercropping meliorates pest control, increases nutrient cycling, and improves water and soil conservation (Tilman et al., 2002). It can improve microorganisms’ functionality and nutrient uptake efficiency and reduce the costs of fertilizers and pesticides (Sahota & Malhi, 2012), enhancing plant root functions and reducing soil's artificial chemical contamination (Yang et al., 2020).

Studies were conducted to understand how soil has been degraded over time and to explore the potential to increase soil health. As we know, intensive agriculture causes losses to soil function, and determining a soil health benchmark by comparing cropping systems could help define goals for improving farm practices. In general, undisturbed lands have higher soil health indicators than cultivated areas, and the gap between the health of undisturbed or native soil and the soil of a particular cropping system is defined as the soil health gap (Maharjan et al., 2020). The concept of the soil health gap supports decision-making to improve soil health, and it can be scaled to regional or national areas (Maharjan et al., 2020).

Since 2003, the Thunder Bay Agricultural Research Station has been conducting studies in plant nutrition, new crop varieties, crop protection, and farm management practices, which have benefitted farm communities in the Thunder Bay District. However, understanding how cropping systems affect soil functions was not assessed. The purpose of this study is to assess soil health under different cropping systems and determine its soil benchmark related to soil organic matter at the Lakehead Agricultural Research Station.

2. Materials and Methods

The study was conducted at Lakehead University Agricultural Research Station [LUARS] in Thunder Bay, Ontario, Canada, in 2019. LUARS is part of the Slate River area, where soils have been influenced by proglacial streams and subsequent deglaciation (Baldwin et al., 2000). The mean annual precipitation ranges from 700-850 mm, and the mean annual temperature ranges from -26 °C to -22 °C in January and 21 °C to 25 °C in July (Environment Canada, 1991).

At LUARS, three cropping systems were chosen (perennial crops-pasture, grass, and annual crops-wheat, barley, corn, soybeans) plus two reference forested areas (a conifer plantation and adjacent naturally regenerating mixed wood forest) (Figure 1). Soil samples were collected in July 2019 using a split-core sampler (AMS Soil Samplers, Inc., American Falls, Idaho). In each area, three random plots were chosen, and at each corner and in the center of each plot, five samples were collected to form one composite sample at two depths (shallow, 0-5 cm, and deeper, 5-15 cm). Soil samples were stored at low temperatures to transport to Lakehead University Laboratory and sent to the Cornell Soil Health Laboratory in Ithaca, New York. Detailed protocols and procedures are available for the CASH framework (Moebius-Clune et al., 2016). Descriptive statistics and a split-plot design were used for the study to compare the soil health indicators for the three cropping systems and two forested areas.

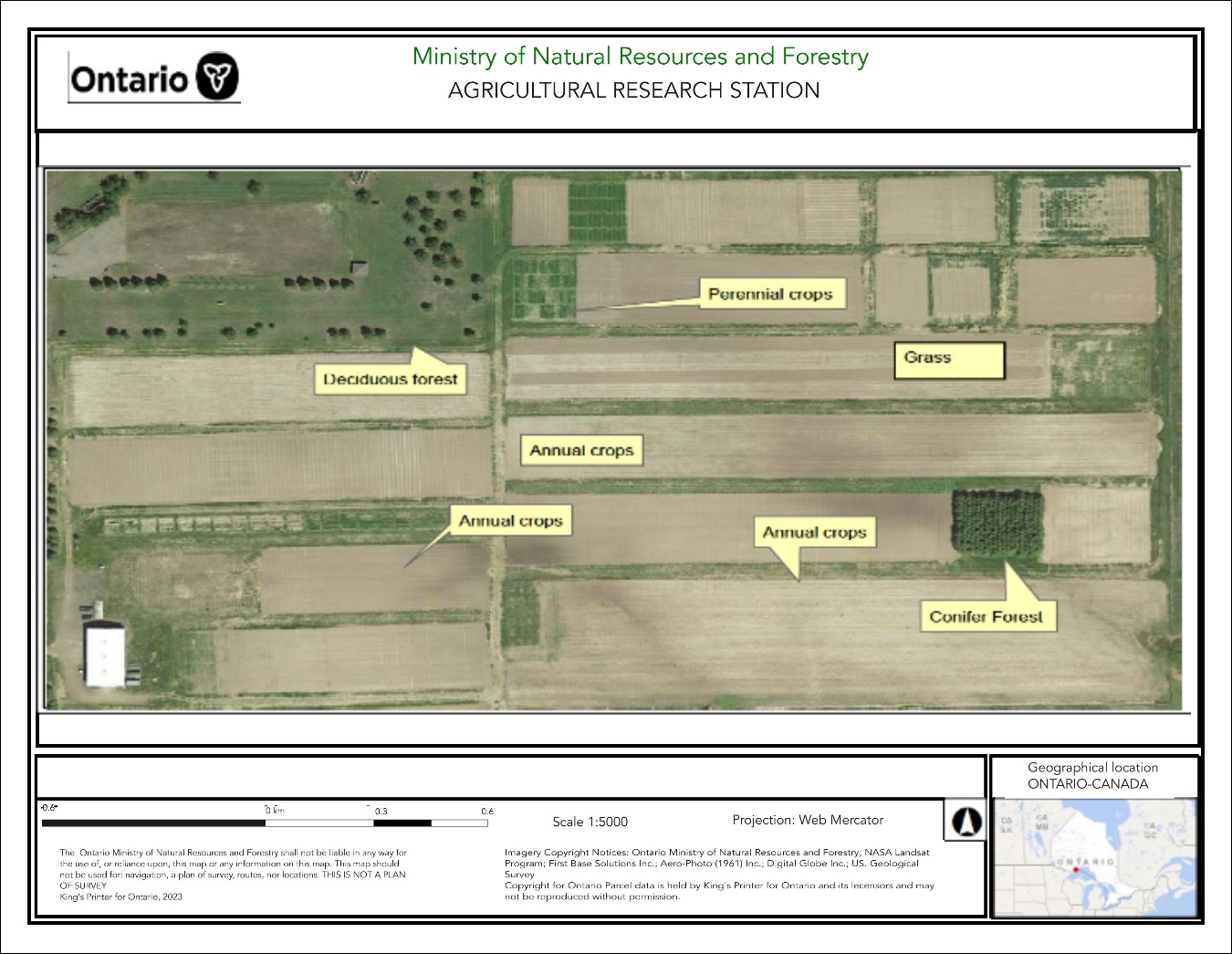

Figure 1
Assess the effect of disturbance on soil health, including triplicate sites of annual crops-wheat, barley, corn, soybeans; perennial crops-pasture, relatively undisturbed grass, deciduous forest, and conifer forest treatments.

3. Results and Discussion

The soil health scores were high to low in the following order: natural forest < grass < conifer forest < annual crops-wheat, barley, corn, soybeans < perennial crops-pasture for the shallow soil samples (Table 1). For the deeper soil samples, the order was natural forest < conifer forest < annual crops-wheat, barley, corn, soybeans < grass < perennial crops-pasture. We can also expect the soil health indicators for the cropping systems to change with the different stages of the crops. For example, SOM decreases, then increases, then decreases for annual crops-wheat, barley, corn, soybeans under intensive management, an effect associated with tillage practices (Congreves et al., 2015; Magdoff & Es, 2000; Magdoff & Weil, 2004), but the absence of soil disturbance in perennial crops-pasture and conifers forest suggests increases only in SOM over a growing season (Magdoff & Es, 2000).

Soil aggregate stability was high in natural forests and low in annual crops-wheat, barley, corn, soybeans for the shallow soil samples, and pasture had the lowest aggregate stability in the deeper soil samples. Low levels of disturbance provide the opportunity for microorganisms to create micro aggregates and increase soil stability (Das et al., 2014). Areas with low machine intervention are expected to have low soil compaction (Afzalinia & Zabihi, 2014). Shallow soils were acid in the conifer plantation and pasture, but acid soil occurred in the deeper samples only in the conifer forest. Low pH decreases NH₄⁺ immobilization and N mineralization rates (Cheng et al., 2013). Low pH f 3.2 to 3.8 is associated with pine needles (Oregon State University, 2017). Microelements such as Mn, Fe, and Zn were variable among the cropping systems.

Fertilization levels are ideally directly proportional to the crop system’s requirement. Micronutrients such as Mn, Fe, and Zn are required for some cropping systems, but rarely are deficiency symptoms widespread (Magdoff & Es, 2000). Nitrogen fertilizer helps microorganisms increase soil organic matter [SOM] decomposition rates (Benalcazar et al., 2024; de Clercq et al., 2015) and make P available for the plant to use. Mycorrhizal fungi increase P uptake in low-P soils. However, high levels of N or P can harm the environment (Carpenter et al., 1998; Magdoff, 2007; Torstensson et al., 2006). More than 50% of fertilizer can be lost to the atmosphere or through percolation or filtration.

Biological indicators including SOM were lowest for the annual crops-wheat, barley, corn, soybeans in shallow soil samples. For the deeper soil samples, pasture, perennial and annual cropping systems had very similar levels of SOM. Similar patterns occurred for soil protein, soil respiration, and active carbon, since these indicators have a close relationship with SOM. Soil organic matter is one of the most vital components which influences almost all the above indicators and impacts several soil functions such as managing pests, water holding capacity, and nutrient retention; higher SOM improves soil aggregation, reduces compaction, and has a beneficial effect on soil biota (Lal, 2011; Magdoff & Es, 2000; Wiesmeier et al., 2019, Yang et al., 2024).

LUARS area soils could be described as having two levels of soil health gap. The first corresponds to recovery from annual crop systems to a benchmark, where 24 % improvement in SOM is required. The second soil health gap compares the conifer plantation to annual crop systems and requires 4 % of SOM increase, which could be a realistic soil health goal (Figure 2). Having this kind of soil health gap analysis helps farmers implement different practices to increase an agroecosystem's resilience and sustainability. Examples of best management practices that could be implemented are application of different crop residues or mulch with high levels of organic matter. Planting cover crops protect against wind erosion and extreme temperatures while minimizing soil disturbance, improves soil structure, and managing soil fertility maintains optimal pH values so microflora and microfauna benefit the soil ecosystem (Acton & Gregorich, 1995; Doran & Parkin, 1994; Magdoff & Es, 2000).

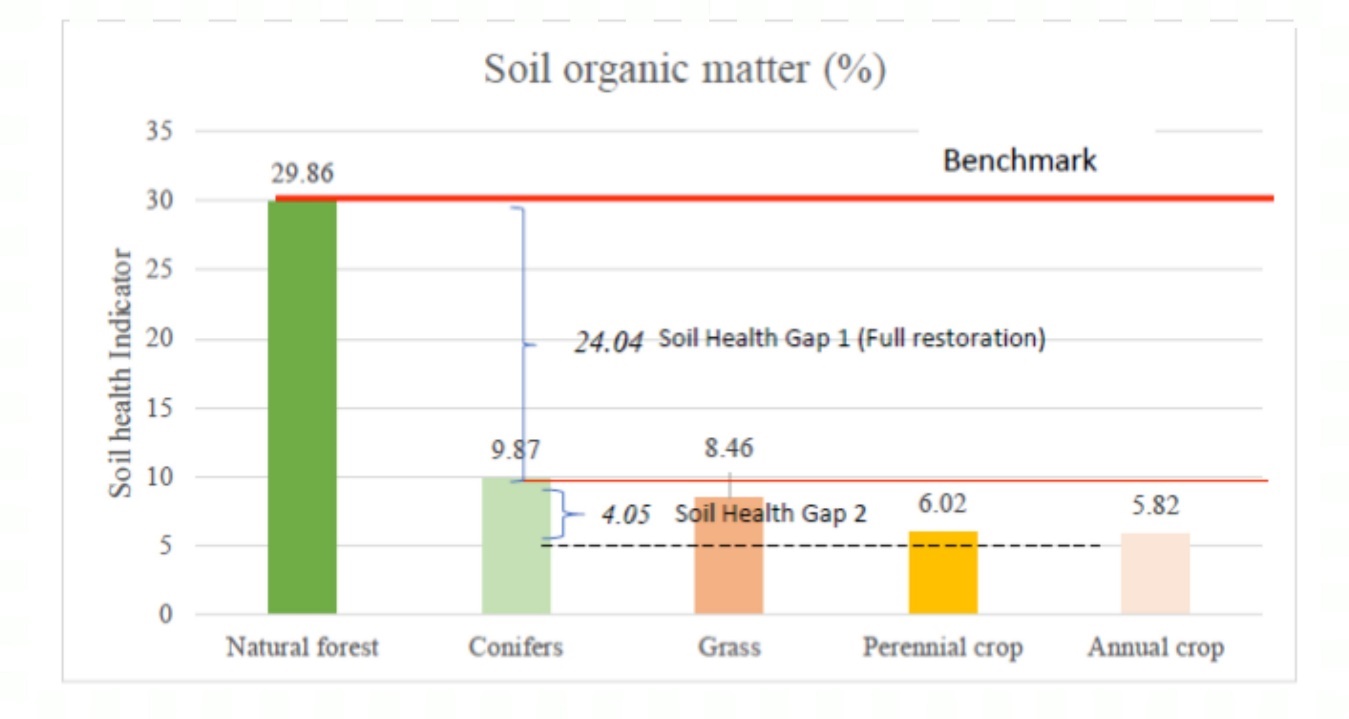

Figure 2
Cropping Systems and benchmark measures of soil organic matter to Illustrate the soil health gap and the potential to improve farm management (adapted from Maharjan 2020).

4. Conclusion

Different cropping systems have varying effects on soil health at the Lakehead Agricultural Research Station [LUARS]. The soil health scores were found to be highest in natural forests and perennial crops-pasture, while annual crops-wheat, barley, corn, soybeans had lower scores. Soil organic matter [SOM] was lowest in annual crops-wheat, barley, corn, soybeans, indicating potential degradation of soil quality. The study also identified the soil health gap, which represents the difference between the health of a particular cropping system and a benchmark. This analysis can help guide farmers in implementing practices to improve soil health and increase the resilience and sustainability of agroecosystems. Overall, this study highlights the importance of considering soil health indicators and implementing appropriate management practices to maintain and enhance soil quality in agricultural systems.

Funding

The Canadian Queen Elizabeth II Diamond Jubilee Advanced Scholars Program, made possible with financial support from the International Development Research Centre and the Social Sciences and Humanities Research Council.

Contributor roles

• Paul Benalcazar: conceptualization, investigation, methodology, resources, software, validation, writing – original draft, writing – review & editing.

Ethical implications

Ethics approval not applicable.

Conflict of interest

The authors declare that they have no affiliation with any organization with a direct or indirect financial interest that could have appeared to influence the work reported.

Acknowledgments

We are grateful to The Canadian Queen Elizabeth II Diamond Jubilee Advanced Scholars Program, made possible with financial support from the International Development Research Centre and the Social Sciences and Humanities Research Council. Thanks to the Canadian Agricultural Police Institute, MITAC, and Lakehead University Agricultural Research Station (LUARS) for providing funds to conduct this research, and the Cornell Soil Health Laboratory, Robert Schindelbeck, Kirsten Kurtz, and the Cornell team for sharing their experience and knowledge related to soil health. Also, thanks to all the farmers who granted access to their lands to conduct this study.

References

Acton, D. F., & Gregorich, L. J. (eds.). (1995). The health of our soils: toward sustainable agriculture in Canada. Agriculture and Agri-Food Canada. https://doi.org/10.5962/bhl.title.58906

Afzalinia, S., & Zabihi, J. (2014). Soil compaction variation during corn growing season under conservation tillage. Soil and Tillage Research, 137, 1–6. https://doi.org/10.1016/j.still.2013.11.003

Agomoh, I. v., Drury, C. F., Phillips, L. A., Reynolds, W. D., & Yang, X. (2020). Increasing crop diversity in wheat rotations increases yields but decreases soil health. Soil Science Society of America Journal, 84(1), 170–181. https://doi.org/10.1002/saj2.20000

Baldwin, D. J., Desloges, J. R., & Band, L. E. (2000). Physical geography of Ontario. In A. H. Perera, D. L. Euler, & I. D. Thompson, Ecology of a Managed Terrestrial Landscape: Patterns and Processes of Forest Landscapes in Ontario (pp. 12-29). University of British Columbia Press. https://www.ubcpress.ca/asset/12524/1/9780774807494.pdf

Benalcazar, P., Seuradge, B., Diochon, A. C., Kolka, R. K., & Phillips, L. A. (2024). Conversion of boreal forests to agricultural systems: soil microbial responses along a land-conversion chronosequence. Environmental Microbiome, 19(1), 32. https://doi.org/10.1186/s40793-024-00576-3

Carpenter, S. R., Caraco, N. F., Correll, D. L., Howarth, R. W., Sharpley, A. N., & Smith, V. H. (1998). Nonpoint pollution of surface waters with phosphorus and nitrogen. Ecological Applications, 8(3), 559-568. https://doi.org/10.1890/1051-0761(1998)008[0559:NPOSWW]2.0.CO;2

Cheng, Y., Wang, J., Mary, B., Zhang, J., Cai, Z., & Chang, S. X. (2013). Soil pH has contrasting effects on gross and net nitrogen mineralizations in adjacent forest and grassland soils in central Alberta, Canada. Soil Biology and Biochemistry, 57, 848-857. https://doi.org/10.1016/j.soilbio.2012.08.021

Congreves, K. A., Hayes, A., Verhallen, E. A., & van Eerd, L. L. (2015). Long-term impact of tillage and crop rotation on soil health at four temperate agroecosystems. Soil and Tillage Research, 152, 17-28. https://doi.org/10.1016/j.still.2015.03.012

Das, B., Chakraborty, D., Singh, V. K., Aggarwal, P., Singh, R., Dwivedi, B. S., & Mishra, R. P. (2014). Effect of integrated nutrient management practice on soil aggregate properties, its stability and aggregate-associated carbon content in an intensive rice–wheat system. Soil and Tillage Research, 136, 9–18. https://doi.org/10.1016/j.still.2013.09.009

de Clercq, T., Heiling, M., Dercon, G., Resch, C., Aigner, M., Mayer, L., Mao, Y., Elsen, A., Steier, P., Leifeld, J., & Merckx, R. (2015). Predicting soil organic matter stability in agricultural fields through carbon and nitrogen stable isotopes. Soil Biology and Biochemistry, 88, 29-38. https://doi.org/10.1016/j.soilbio.2015.05.011

DeFries, R. S., Foley, J. A., & Asner, G. P. (2004). Land-use choices: Balancing human needs and ecosystem function. Frontiers in Ecology and the Environment, 2(5), 249-257. https://doi.org/10.1890/1540-9295(2004)002[0249:LCBHNA]2.0.CO;2

Doran, J. W., & Parkin, T. B. (1994). Defining and Assessing Soil Quality. In W. Doran, D. C. Coleman, D. F. Bezdicek, & B. A. Stewart (eds.), Defining Soil Quality for a Sustainable Environment (pp. 1-21). SSSA Special Publications. https://doi.org/10.2136/sssaspecpub35.c1

Environment Canada. (1991). The state of Canada’s environment. Government of Canada. https://publications.gc.ca/pub?id=9.881528&sl=0

Karlen, D. L., Veum, K. S., Sudduth, K. A., Obrycki, J. F., & Nunes, M. R. (2019). Soil health assessment: Past accomplishments, current activities, and future opportunities. Soil and Tillage Research, 195, 104365. https://doi.org/10.1016/j.still.2019.104365

Lal, R. (2011). Soil Health and Climate Change: An Overview. In B. P. Singh, A. L. Cowie, & K. Y. Chan (eds.), Soil Health and Climate Change (pp. 3-24). Springer Berlin Heidelberg. https://doi.org/10.1007/978-3-642-20256-8_1

Magdoff, F. (2007). Ecological agriculture: Principles, practices, and constraints. Renewable Agriculture and Food Systems, 22(2), 109-117. https://doi.org/10.1017/S1742170507001846

Magdoff, F., & Es, H. van. (2000). Building soils for better crops (2nd ed.). Sustainable Agriculture Network. https://soilwealth.com.au/wp-content/uploads/2023/08/030218bettersoils.pdf

Magdoff, F., & Weil, R. R. (eds.). (2004). Soil organic matter in sustainable agriculture. CRC press. https://doi.org/10.1201/9780203496374

Maharjan, B., Das, S., & Acharya, B. S. (2020). Soil Health Gap: A concept to establish a benchmark for soil health management. Global Ecology and Conservation, 23, e01116. https://doi.org/10.1016/j.gecco.2020.e01116

Moebius-Clune, B. N., Moebius-Clune, D. J., Gugino, B. K., Idowu, O. J., Schindelbeck, R. R., Ristow, A. J., Es, H. M. van, Thies, J. E., Shayler, H. A., McBride, M. B., Kurtz. K. S. M., Wolfe, D. W., & Abawi, G. S. (2016). Comprehensive Assessment of soil Health - The Cornell Framework (3.2 ed.). Cornell University. http:www.css.cornell.edu/extension/soil-health/manual.pdf

Oregon State University. (2017). Small Farms Workshops. College of Agricultural Sciences, Oregon State University. https://agsci.oregonstate.edu/academics/available-projects/small-farms-workshops

Reicosky, D. (ed.). (2018). Managing soil health for sustainable agriculture Volume 1. Burleigh Dodds Science Publishing. https://doi.org/10.1201/9781351114530

Sahota, T. S., & Malhi, S. S. (2012). Intercropping barley with pea for agronomic and economic considerations in northern Ontario. Agricultural Sciences, 03(07), 889-895. https://doi.org/10.4236/as.2012.37107

Tilman, D., Cassman, K. G., Matson, P. A., Naylor, R., & Polasky, S. (2002). Agricultural sustainability and intensive production practices. Nature, 418(6898), 671-677. https://doi.org/10.1038/nature01014

Torstensson, G., Aronsson, H., & Bergström, L. (2006). Nutrient use efficiencies and leaching of organic and conventional cropping systems in Sweden. Agronomy Journal, 98(3), 603-615. https://doi.org/10.2134/agronj2005.0224

Wei, X., Shao, M., Gale, W., & Li, L. (2014). Global pattern of soil carbon losses due to the conversion of forests to agricultural land. Scientific Reports, 4(1), 4062. https://doi.org/10.1038/srep04062

Wiesmeier, M., Urbanski, L., Hobley, E., Lang, B., von Lützow, M., Marin-Spiotta, E., van Wesemael, B., Rabot, E., Ließ, M., Garcia-Franco, N., Wollschläger, U., Vogel, H.-J., & Kögel-Knabner, I. (2019). Soil organic carbon storage as a key function of soils - A review of drivers and indicators at various scales. Geoderma, 333, 149-162. https://doi.org/10.1016/j.geoderma.2018.07.026

Yang, Q., Peng, J., Ni, S., Zhang, C., Wang, J., & Cai, C. (2024). Soil erosion-induced decline in aggregate stability and soil organic carbon reduces aggregate-associated microbial diversity and multifunctionality of agricultural slope in the Mollisol region. Land Degradation & Development, 35(11), 3714-3726. https://doi.org/10.1002/ldr.5163

Yang, T., Siddique, K. H. M., & Liu, K. (2020). Cropping systems in agriculture and their impact on soil health-A review. Global Ecology and Conservation, 23, e01118. https://doi.org/10.1016/j.gecco.2020.e01118
